0.333V/mA output Split Core Current Transformer Customized Output and Leads

Brand Name : YOMIN

Model Number : YM-SCT-0750/1250/2000/3000

Certification : CE / RoHS

Place of Origin : Zhejiang , China ( Mainland )

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C , T/T , Western Union , Paypal

Supply Ability : 1000 Pieces Per Week

Delivery Time : 5 - 20 working days after received your payment

Packaging Details : Export carton , 4 Pieces / Carton

Coil Structure : Toroidal

Coil Number : Autotransformer

Phase : Single phase

current transformer : split core current transformer

Output : 0.333V

Accuracy : 1.0

Frequency : 50/60HZ

Contact Now

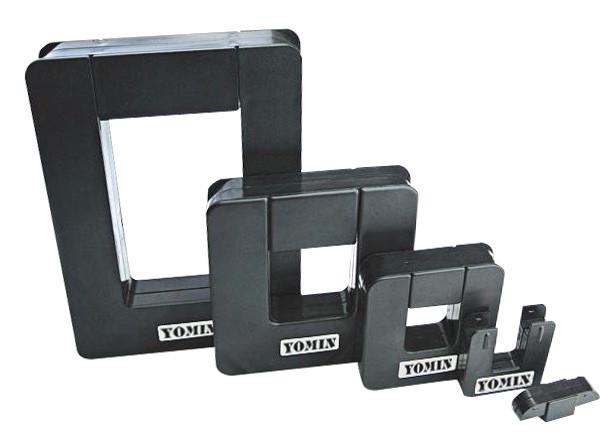

0.333V/mA output Split Core Current Transformer Output and Leads Can Be Customized

Description :

The YM-SCT series of split core current transformers are designed for fast and easy installation.The split
core design permits non-contact current measurements through magnetic field induction without requiring that the
primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable
current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe
low voltage output and permits safe opening of the secondary

Drawing Size

Model

I. D.

Rated Amps

Output

Accuracy

SIZE (mm )

A

B

C

D

E

YM-SCT-0750

0.75"
(19.1mm)

5, 15, 30, 50, 70, 100, 150, 200

0.333V

1.0

51.6

54.1

16.6

19.1

18

YM -SCT-1250

1.25"
(31.8mm)

70, 100, 150, 200, 250, 300, 400, 600

1.0

82.3

85.3

26.4

32

32.3

YM -SCT-2000

2.00"
(50.8mm)

400, 600, 800, 1000, 1200, 1500

1.0

120

125

29.6

52.5

52

YM -SCT-3000

3.00" x 5.00"
(76.2mm x127mm)

1000, 1200, 1500, 2000.3000

1.0

145

199

30.5

76

130

0.333V/mA output Split Core Current Transformer Customized Output and Leads

Features

● Rated Current 5A to 3000A loads.
● Rated output: 0.333Vac
● Accuracy:±1% from 5% to 120% of rated current
● Phase Angle: less than 2 degrees at 50% of rated current
● Insulation Voltage:600Vac
● Maximum Primary Voltage:5000Vac(Insulated Conductor)
● Operating Temperature:-15℃to 60℃.
● Frequency Range:50-400Hz
● Leads:4 Foot(105cm),UL 1015,Twisted Pair,
0.34 mm 2 (22AWG)
● UL&ETL ,CE recognized. RoHS Compliant
● Output and leads can be customized

Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
